Online Catalogue
Honda CRF230 M-9,A
2009 to 2010
Front Sprocket

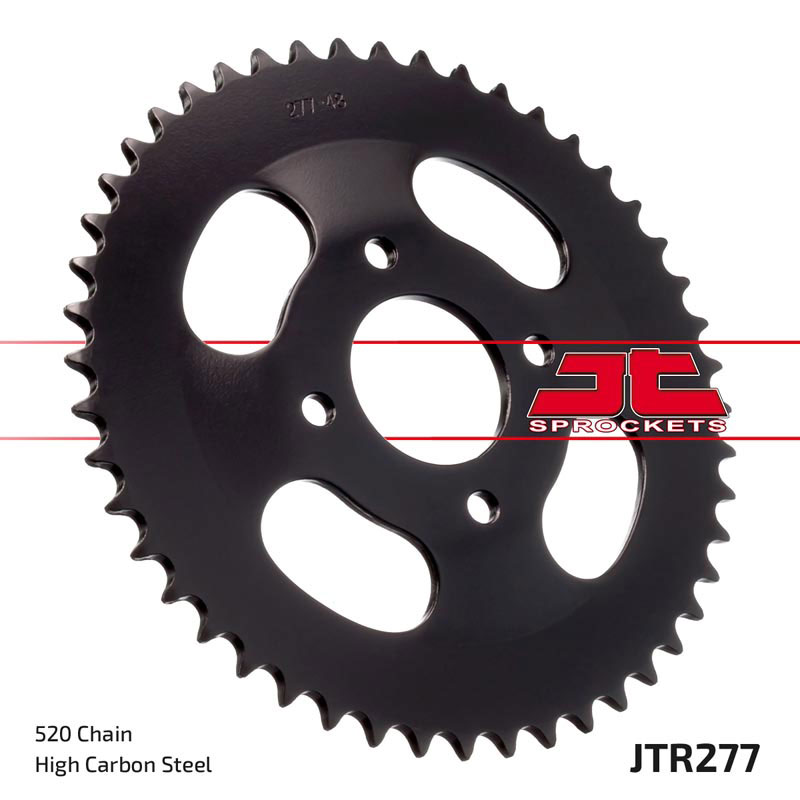

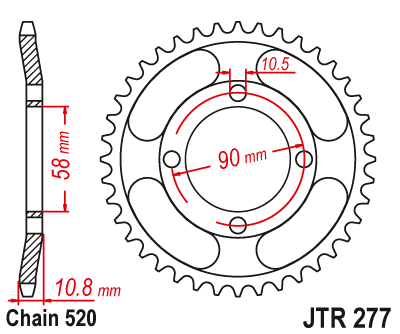

Rear Sprocket
Lightweight Self-Cleaning Rear Sprocket
Drive Chain
Pitch: 520
Length: 100
Please note that the chain shown in this listing is for size reference only. For the correct chain type and grade, please refer to the vehicle's manufacturer manual.
Gear Ratio Chart
| Teeth | Front Sprocket | |
| 13 | ||
| Rear Sprocket | 38 | 2.92 standard |
| 45 | 3.46 +18.4% | |
| 47 | 3.62 +23.7% | |
| 48 | 3.69 +26.3% | |
| 49 | 3.77 +28.9% | |
| 50 | 3.85 +31.6% | |
| 51 | 3.92 +34.2% | |
| 52 | 4.00 +36.8% | |
| 53 | 4.08 +39.5% | |
Lower gear ratios allow for higher top speeds.
Higher gear ratios increase torque for better acceleration.
